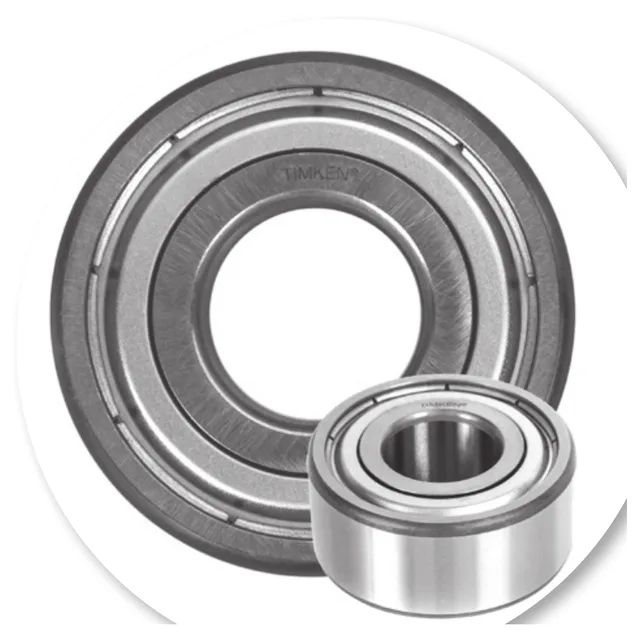

Representative image
SPARE PARTS · BEARINGS
Double Row Angular Contact Ball Bearing 3212 A (60×110×36.5 mm)
Double row angular contact ball bearing, 3212 A (30° contact angle). Bore 60 mm, outside diameter 110 mm, width 36.5 mm. Dynamic load rating 59.90 kN, static 53.60 kN.
- Product code
- RY-RL-1069
- Compatible vehicles / Application
- Pumps, compressors, electric motors and industrial applications
Technical data
- Bore (d)
- 60 mm
- Outside diameter (D)
- 110 mm
- Width (B)
- 36.5 mm
- Contact angle
- 30°
- Dynamic load rating (Cr)
- 59.90 kN
- Static load rating (C0r)
- 53.60 kN
- Speed limit (grease / oil)
- 3400 / 4500 rpm
- Weight
- 1.38 kg
The quote message is prepared automatically with the product code.
